We are the Official Distributor for modec Portable Valve Actuators
in Estonia, Latvia and Lithuania.

Improve the safety and comfort of your teams during valve operations with Portable Valve Actuators and modec connect. You thus benefit from a turnkey solution, without any prior modification of your equipment. Versatile and adaptable, our actuators can be installed on all types of valves, regardless of their configuration, thanks to our range of patented adapters.

Enhanced security

Absorption of reaction forces, reducing the risk of injury and ensuring operators safety

Optimized comfort

Reduction of muscle fatigue, even on difficult valves.

Accident prevention

Ergonomic design for safe use.

Safety

Ensure the protection of your equipment, minimizing risks and downtime.

Profitability

Optimize operations and maximize returns.

Collect real-time data on your valves

Quick report generation

Effortless data analysis

Read More

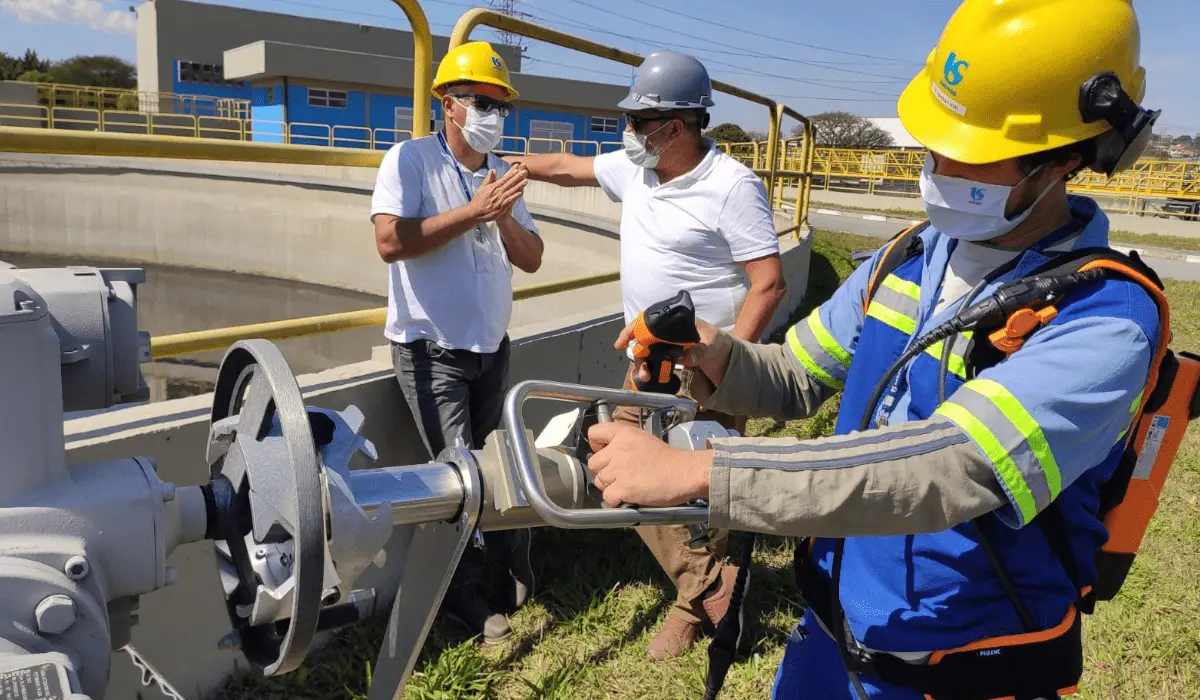

Modec MC89 electric portable valve actuator 850 Nm battery-powered



Pneumatic Portable Valve Actuators HL83 – Technical Specifications

Model Free Speed (rpm) @ 4 bar Free Speed (rpm) @ 5 bar Free Speed (rpm) @ 6.2 bar Max Torque (Nm) @ 4 bar Max Torque (Nm) @ 5 bar Max Torque (Nm) @ 6.2 bar
HL83S-035 230 250 270 100 120 145
HL83S-060 130 140 150 170 200 250
HL83H-111 70 76 83 250 300 370
HL83H-169 46 50 54 380 450 570
HL83H-321 24 26 29 720 860 1070

ATEX certified (II 2 GD c IIC T6 to T4, except when equipped with revolution counter). Maximum torque can be set by adjusting air supply pressure.

Compact Pneumatic Actuators HL83C

Compact and lightweight pneumatic portable valve actuators. Available in multiple power options. ATEX certified (II 2 GD c IIC T6 to T4, except when fitted with revolution counter).

Petrol Portable Valve Actuators PY68 – Technical Specifications

Parameter Specification
Max Torque up to 1140 Nm (840 lb.ft)
Speed Range up to 305 rpm
Weight 10 – 10.3 kg
Fuel Petrol (autonomous operation)

Integrated clutch system protects operator and equipment. Suitable for outdoor and remote locations.

Electric Portable Valve Actuator MC89 – Technical Specifications

Parameter Specification
Max Torque 850 Nm (630 lb.ft)
Speed Range 0 – 450 rpm
Battery 2 × 18V Li-Ion, up to 1 hour continuous operation
Ingress Protection IP20
Weight from 5.1 kg

Integrated electronic torque limiter prevents damage to valves and tool. Main power connection kit available for unlimited autonomy.

Modec Connect

Data collection system that records torque, speed, number of rotations and rotation direction during valve operations. Data is transmitted via Bluetooth and can be analysed using Modec Connect software.

Adaptors & Accessories

  • Banjo heads (standard and heavy duty)
  • Right-angle drive RA30
  • Torque multiplier TM004
  • FRL units (filtration, pressure regulation and lubrication)
  • Transport cases
  • Valve adaptors for various handwheel types

FAQ

What does Modec manufacture?

Modec manufactures portable valve actuators designed to mechanise the opening and closing of manual valves. The range includes pneumatic, petrol-powered and battery-powered models, together with adapters and accessories.

Where are Modec portable valve actuators used?

Modec portable valve actuators are used in industrial plants, marine and offshore operations, water treatment, energy, chemical processing and oil and gas facilities where manual valves must be operated repeatedly or with significant effort.

How can portable valve actuators reduce physical effort?

Portable valve actuators reduce the need to turn large or difficult handwheels manually. This can decrease operator fatigue and make repeated valve opening and closing operations faster and more manageable.

Are adapters available for different valve handwheels?

Modec offers a range of adapters, banjo heads, angle drives and accessories for different handwheel sizes and valve configurations. The correct connection must be selected according to the valve dimensions and required torque.
